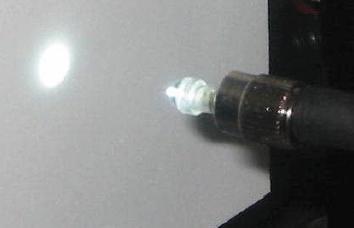

Model 11-TU2 miniature fiber collimator consists of precise optical lens assembly and can be attached directly to FC-, SC- or ST- type optical connctor as shown in the photo.  Please notice that FC connectorized fiber pigtail is not included.

It collimates or focuses beams from different multi- or singl-mode fiber patch-cords, or couples collimated beams into SM, MM or PM optical fibers.  Collimator contains high quality optical glass lens, controllable along Z-axis only, providing collimation of focusing adjustment. Collimator is very compact, having ~ 4x9 mm size. Collimated beam diameter: 0.6- 1.5 mm.

• small size
• adjustable focusing/collimation
• can work with FC-, SC- or ST- connectorized fiber
• broadband (VIS-IR), can operate with SM, MM, PM fibers having NA>0.22
• epoxy-free light pass for high power operation
