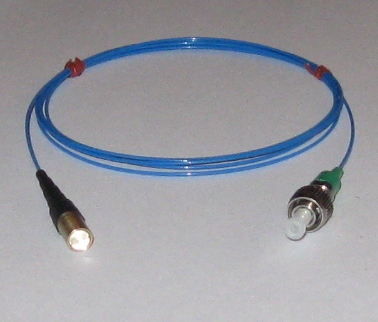

M015 fiber pigtailed optical collimator is a compact fiber pigtailed device with low back-reflection and polarization dependent losses. It is broadband device, operating within 450nm - 1800 nm wavelength range. Device has FC/APC connectorized optical fiber pigtail, protected by 0.9mm tubing.

Fiber type: multimode AFS 105/125 um; NA= 0.22.
Fiber length: ~ 1 meter
Connector: : FC/APC
Collimator size: Ø6.1x45 (with boot)
Focused beam (FWHM @30 cm): ~2.1 mm
Max power: ~ 40 dBm
