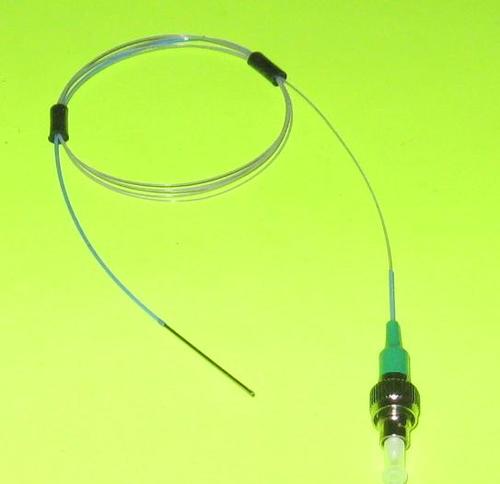

M010-980 fiber pigtailed optical collimator is a very compact device, mounted into a 0.8mm outside diameter, 20 mm long metal tube.

Device provides ~70 um FWHM focused spot at working distance of ~4.5mm

Low back-reflection (<-36 dB) and polarization dependent losses.

Operating wavelength range: 940nm - 1950 nm

Fiber pigtail: large mode diameter (MFD~7.1 um) single mode fiber, FC/APC connectorized, 0.5mm tefzel tubing.protected

Fiber pigtail length: ~ 1.2 meter
