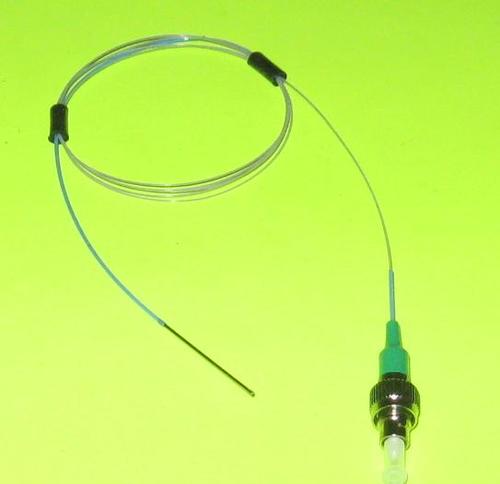

M010 fiber pigtailed optical collimator is a very compact fiber pigtailed device, mounted into a 0.8mm outside diameter, 20 mm long metal tube.
Device provides ~76 um FWHM spot size at distance of ~4.5mm
Low back-reflection (<-36 dB) and polarization dependant losses.
Operating wavelength range: 1300nm - 1950 nm
Fiber pigtail: smf 28 fiber, FC/APC connectorized, protected by 0.9mm tubing.
Fiber pigtail length: ~ 1 meter
